GraphQL with Hasura and Nuxt

Working with Hasura and Nuxt is one of the most straightforward ways I’ve personally found to create a Jamstack app with GraphQL, and I couldn’t be more excited about the developer experience.

Here’s what we’ll be building:
hasura-nuxt-demo.netlify.app

Here’s the repo:
github.com/sdras/favegame

We’ll be scoping it to just the basic functionality for the purposes of clarity, but you can build far richer experiences from here with a lot of ease. Let’s dive in!

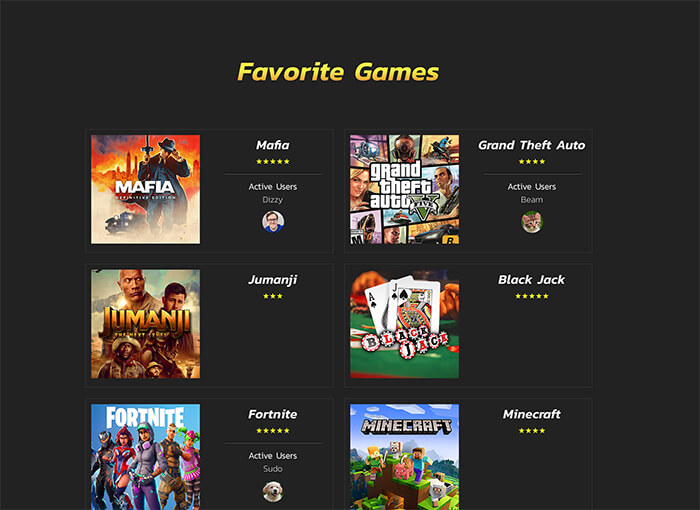

screenshot of favegames site

Setting up

First, create a free Hasura account– it will prompt you if you would like to bring your own Postgres database (or what I like to call BYOP) or link a new or existing Heroku account to create a new database. Choose whichever option suits you (I linked my Heroku account).

From there, create a new project. In that project, you’ll create a table and add the fields you’ll need. Our first table is users I needed an id, of type Integer (auto-incrementing), name, of type Text (another name for String :) ), and profileImg, which will be of type Text as well.

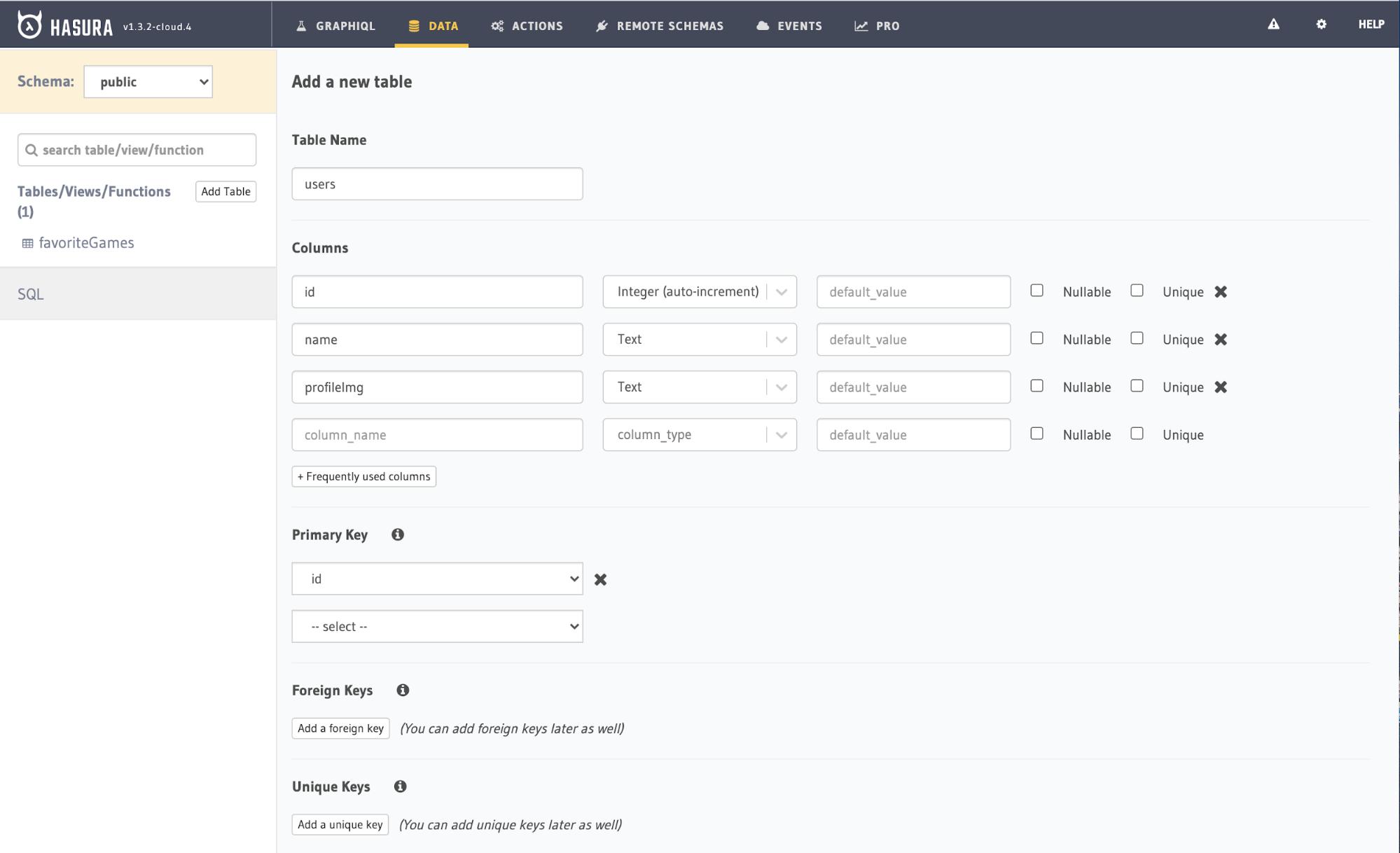

Screenshot of Hasura's "Add a new table" form

From there, insert some rows of dummy data in the Insert Row tab as well. If you switch to the Browse Rows tabs, you should see your dummy data populated.

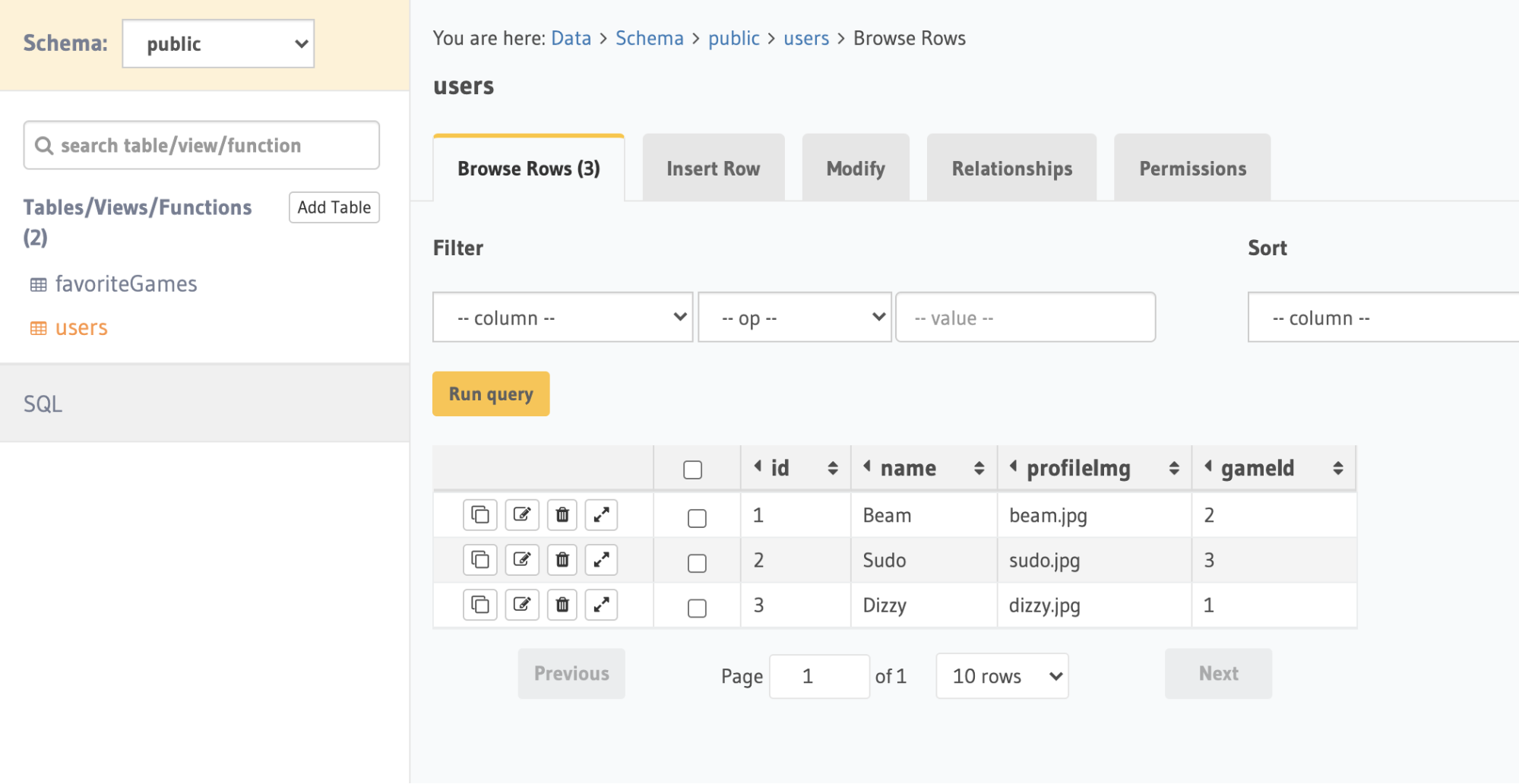

Screenshot of Hasura's dashboard where we are browing the users table and seeing the first three rows of data

Now, let’s create another table called favoriteGames and do the same. This time we’ll use the same id, and name, but also add rating (Integer), and image (Text):

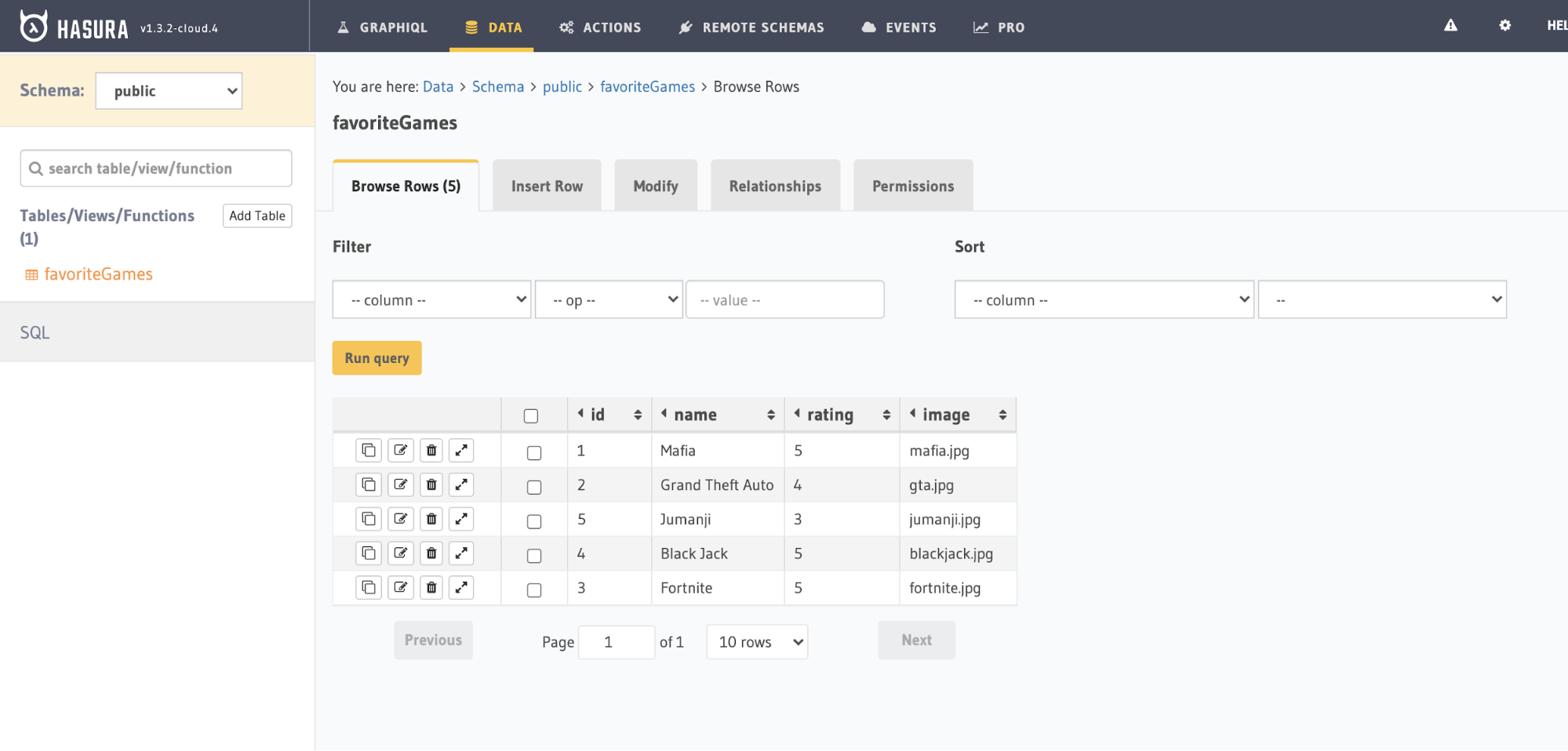

Screenshot of Hasura's dashboard with favoriteGames table with new rating and image columns

Now, we should be able to go to the GraphiQL tab at the very top, test our first query, and see how it goes:

query getGames {
  favoriteGames {
    id
    name
    rating
  }
}

returns:

{
  "data": {
    "favoriteGames": [
      {
        "id": 1,
        "image": "mafia.jpg",
        "name": "Mafia",
        "rating": 5
      },
      {
        "id": 2,
        "image": "gta.jpg",
        "name": "Grand Theft Auto",
        "rating": 4
      },
      {
        "id": 5,
        "image": "jumanji.jpg",
        "name": "Jumanji",
        "rating": 3
      },
      {
        "id": 4,
        "image": "blackjack.jpg",
        "name": "Black Jack",
        "rating": 5
      },
      {
        "id": 3,
        "image": "fortnite.jpg",
        "name": "Fortnite",
        "rating": 5
      },
      {
        "id": 6,
        "image": "minecraft.jpg",
        "name": "Minecraft",
        "rating": 4
      }
    ]
  }
}

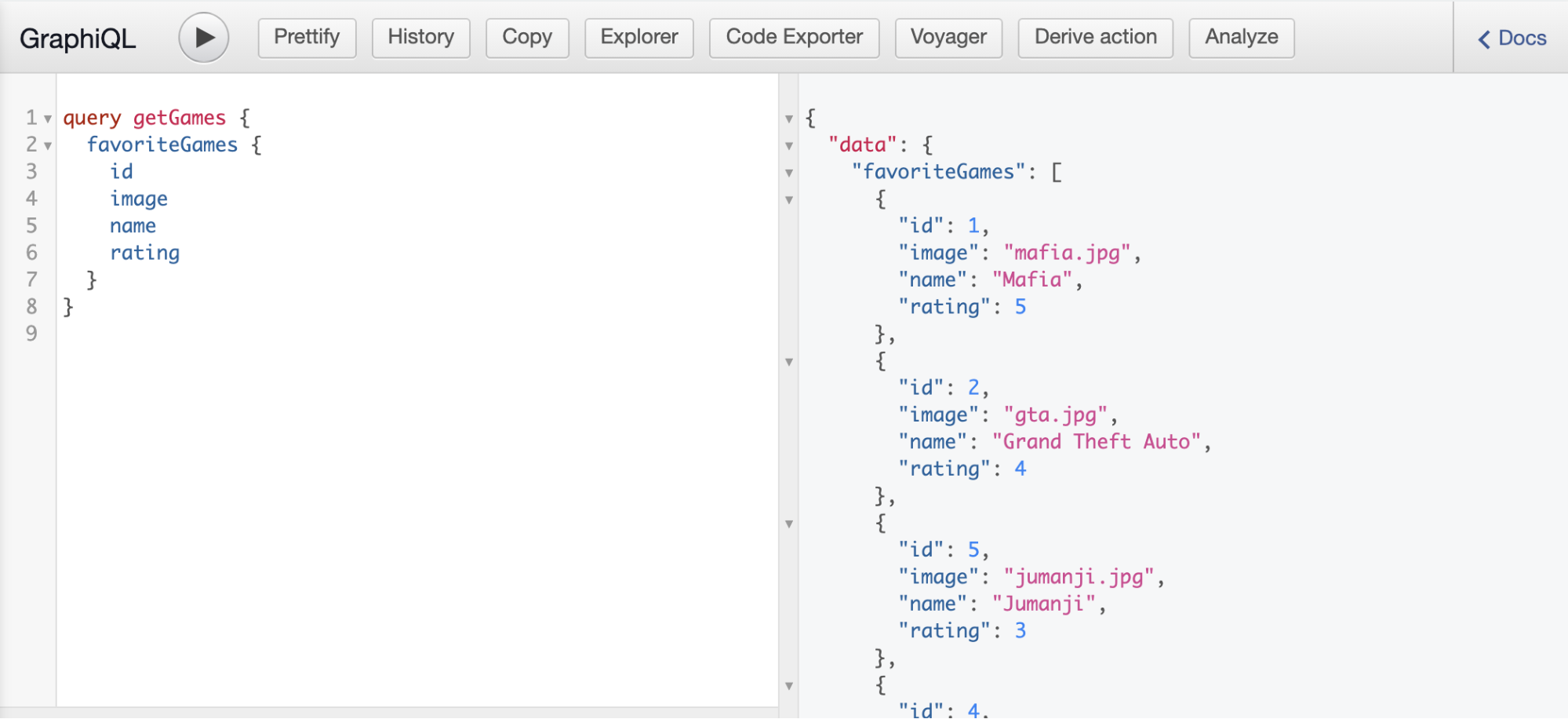

Screenshot of GraphiQL query of getGames and the results

Great! But what we really want is a list of all of the games along with the relevant active users associated with each game. In order to create that association between the two tables, we need to create a relationship.

Relationships

Let’s go back to our users table, and click on the modify tab. Here, we’ll create one more field, called gameId. This will give us the ability to pick an associative id from the favoriteGames table. Let’s go back to our browse rows tab and add id numbers of some games as well.

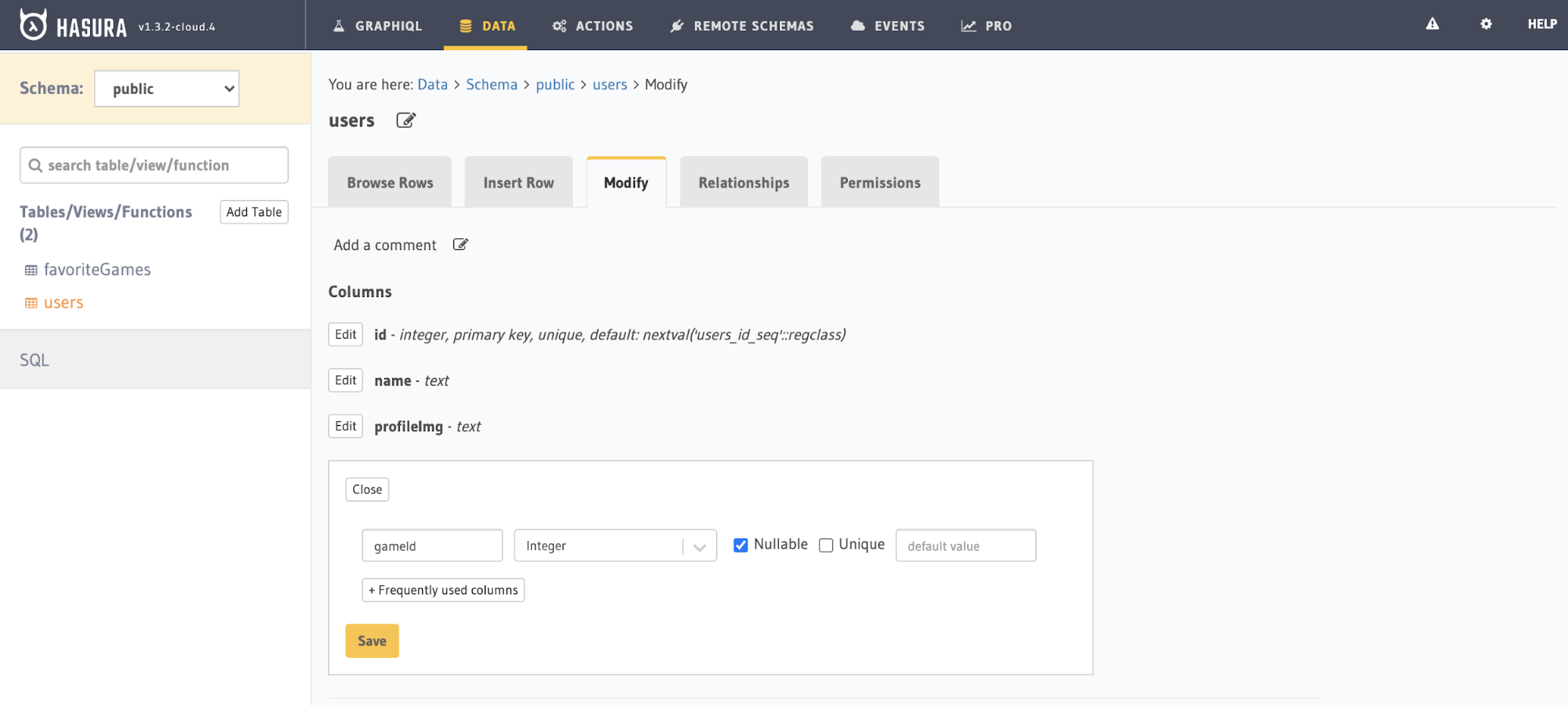

Screenshot of Hasura modify gameId

Now, go back to favoriteGames and click the relationships tab. In the table, specify an Array Relationship, name it gameUser, and reference the users table.

The id of this table should have a relationship with the gameId you just created in the other users table.

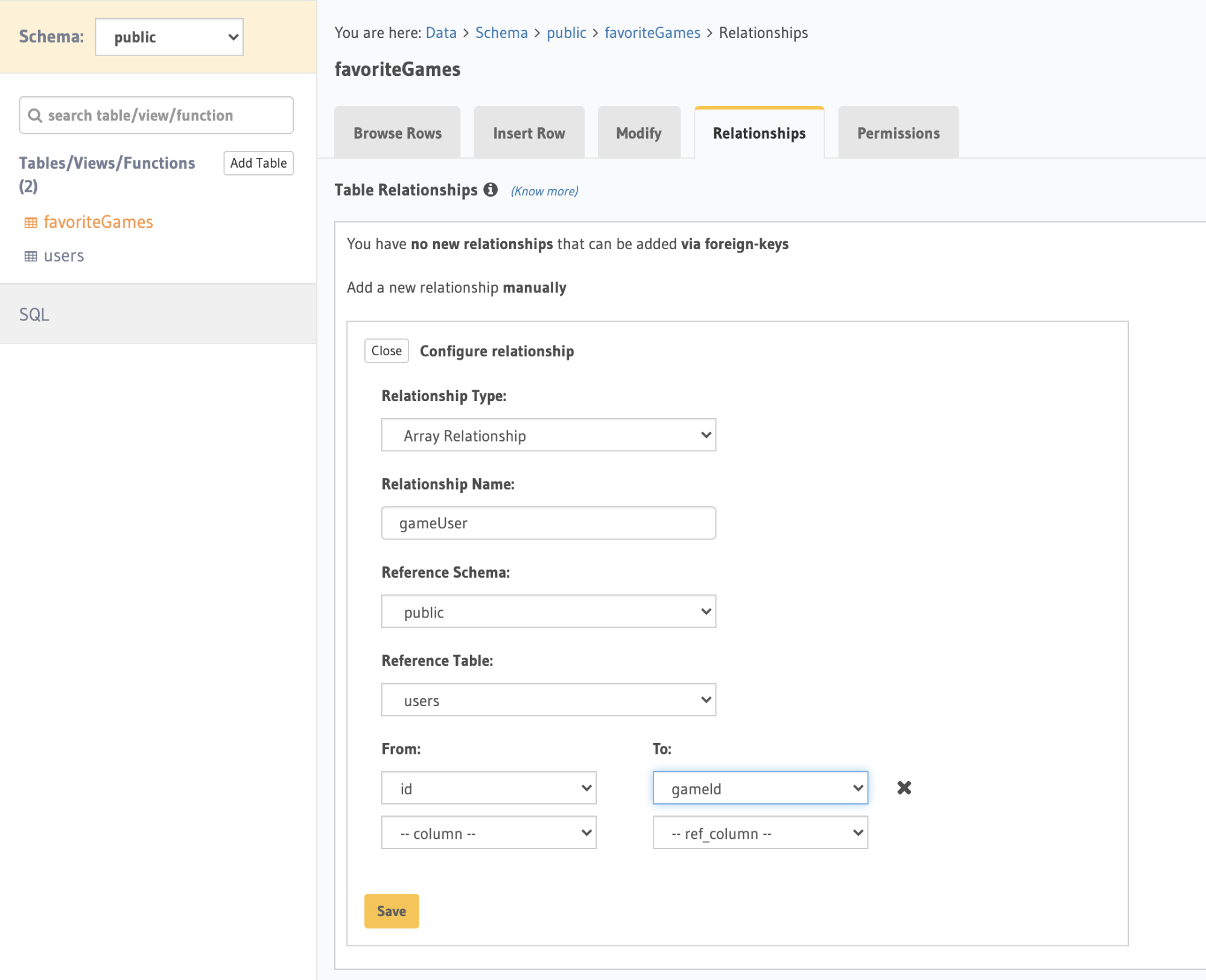

Screenshot of Hasura SQL relationships

Once you save it, you should see the array relationship reflected in the table in this tab:

users . gameId → favoriteGames . id

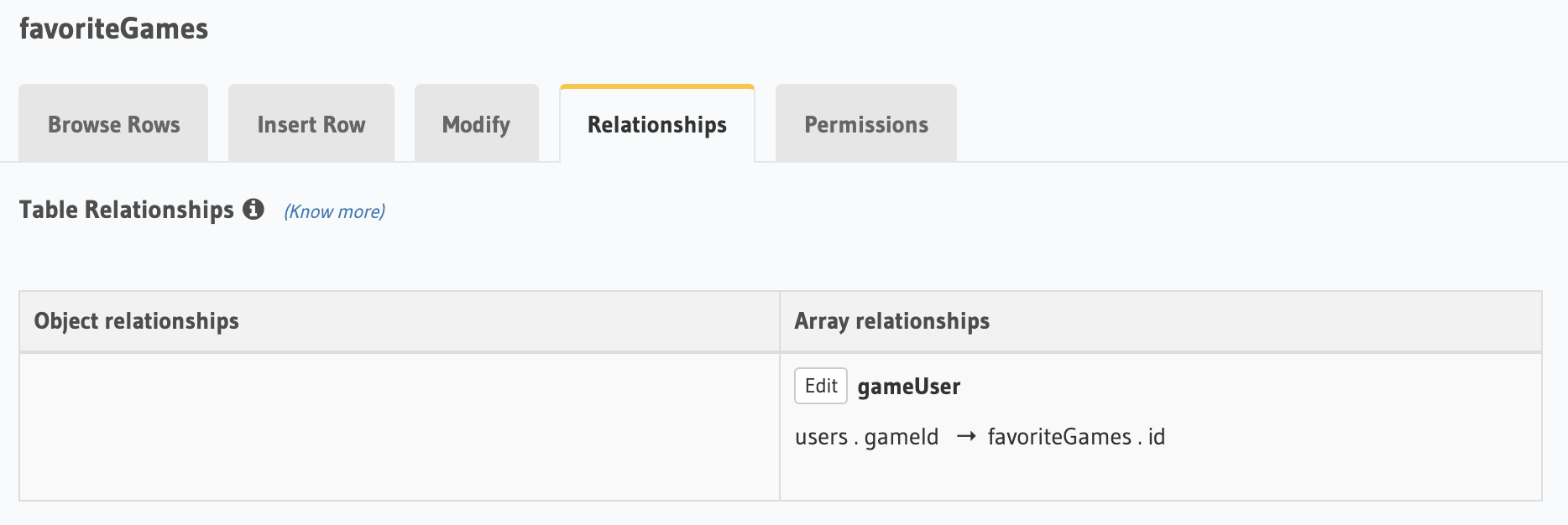

Screenshot of Hasura SQL gameUser array relationships

Now we can go back to the top GraphiQL tab, and type in a new query, with that relationship:

query getGames {
  favoriteGames {
    id
    name
    rating
    gameUser {
      id
      name
      profileImg
    }
  }
}

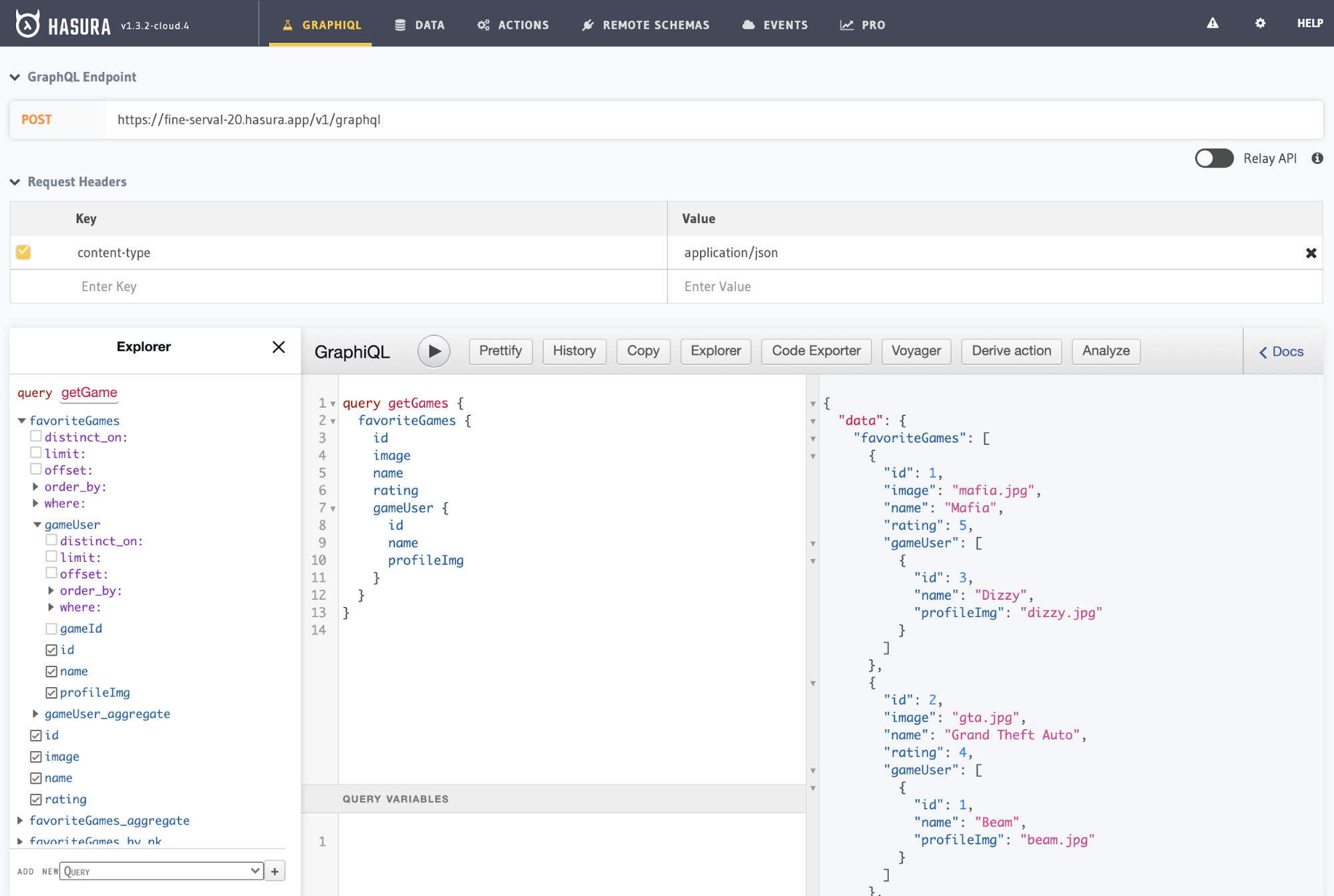

Screenshot of Hasura GraphiQL getGame response

Cool! Now we have our first set of data and relationships set up and ready to use in our application.

Let’s Build the Nuxt App

Ok! Now let’s build out our Nuxt application. This tutorial assumes basic knowledge of Nuxt, but if you aren’t aware of how to use it, I have a couple of courses on Frontend Masters that show you how to set it up.

Let’s create the app:

yarn create nuxt-app

Follow the prompts, and for the last prompt, pick static (Jamstack app) as the deploy target. Then we’ll add the packages we’ll need:

yarn add @nuxtjs/apollo graphql-tag

Our Nuxt Configuration

From here, we can open our nuxt.config.js and let it know we’ll be using the module:

modules: ["@nuxtjs/apollo"],

and also add a section for Apollo:

 apollo: {
   clientConfigs: {
     default: {
       httpEndpoint: process.env.HASURA_ENDPOINT
     }
   }
 },

You can see here that I am using an environment variable, I create a .env file at the base root of the project, and put in this endpoint:

HASURA_ENDPOINT=https://yourendpointhere.hasura.app/v1/graphql

You can find your endpoint at the top of the GraphiQL tab (it will say GraphQL endpoint).

Bringing it into the store

In an application like this, you may want to pull the data from the Vuex store, if it’s fairly straightforward, so you can centralize your data sources. You might also want finite control over what data is pulled into what page. The app I built uses the Vuex store but I’ll show you how to do it both ways.

In our store/index.js:

First we need to install gql:

import gql from "graphql-tag";

Then we need the state, where we’ll eventually store our favoriteGames:

export const state = () => ({
 favoriteGames: \[]
});

In actions, we’ll call out to Apollo, using this.app to access it. We’ll create our query using gql, and then commit a mutation:

export const actions = {
 async callApollo({ commit }) {
   let response = await this.app.apolloProvider.defaultClient.query({
     query: gql`query GetGames {
         favoriteGames {
           id
           name
           rating
           gameUser {
             id
             name
             profileImg
           }
         }
       }`
   });

   await commit("updateFavoriteGames", response.data.favoriteGames);
 }
};

Now let’s create that mutation that will store this data in state:

export const mutations = {
 updateFavoriteGames: (state, data) => {
   state.favoriteGames = data;
 }
};

Finally, we have to dispatch this action. I’ll create a plugin that I’ll call from the server using .server.js as the suffix of the filename:

plugins/getGames.server.js

export default async ({ store }) => {
 await store.dispatch("callApollo");
};

Now, if I register that plugin in nuxt.config.js, any time I build the site, it will gather all the data for me in the Vuex store!

plugins: [`~/plugins/getGames.server.js`],

You can look in your devtools at the Vuex tab and see the data coming in as it should:

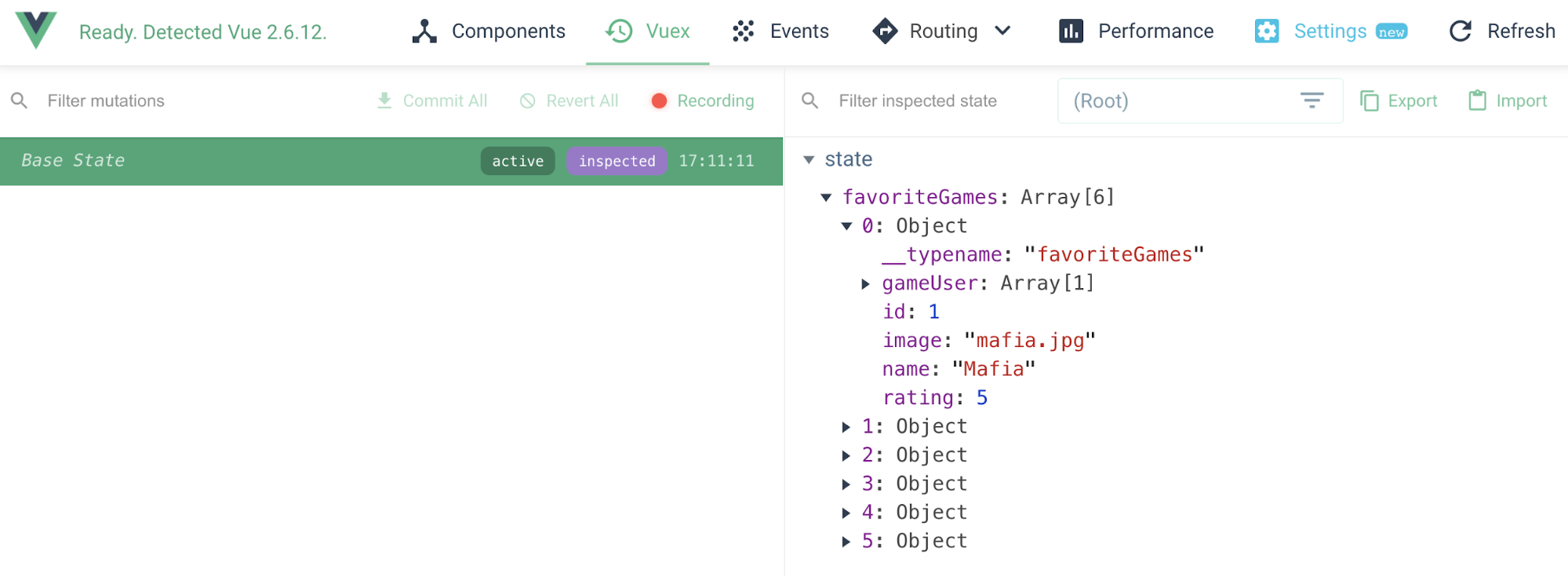

favoriteGames data in devtools at the Vuex tab

Awesome! Now we’ve created a relationship with our data from Hasura and our application.

Now I can add the data to my views as usual. In pages/index.vue:

<template>
 <div class="container">
   <h1>Favorite Games</h1>

   <main class="game-container">
     <section v-for="game in favoriteGames" :key="game.id">
       <AppGame :game="game" />
     </section>
   </main>
 </div>
</template>

<script>
import { mapState } from "vuex";
import AppGame from "@/components/AppGame.vue";

export default {
 components: {
   AppGame
 },
 computed: {
   ...mapState(["favoriteGames"])
 }
};
</script>

Hooray! 🎉

Alternatively, Per-Page

import gql from "graphql-tag";

export default {
 apollo: {
   favoriteGames: {
     query: gql`query MyQuery {
         favoriteGames {
           id
           name
           rating
           gameUser {
             id
             name
             profileImg
           }
         }
       }`,
     update(data) {
       return data.favoriteGames;
     }
   }
 },
}
</script>

You can see this implementation here.

Deploy the App to Netlify

In order to deploy our Nuxt application, we will hook our GitHub or GitLab repo to our project by logging into Netlify, finding the repo and connecting it, and then selecting these options:

Build command:
yarn generate

Publish directory:
dist

We’ll also go into the Settings tab at the very end, scroll down to Environment, and the Environment Variables section, and add in the same endpoint you did to the .env file you had locally:

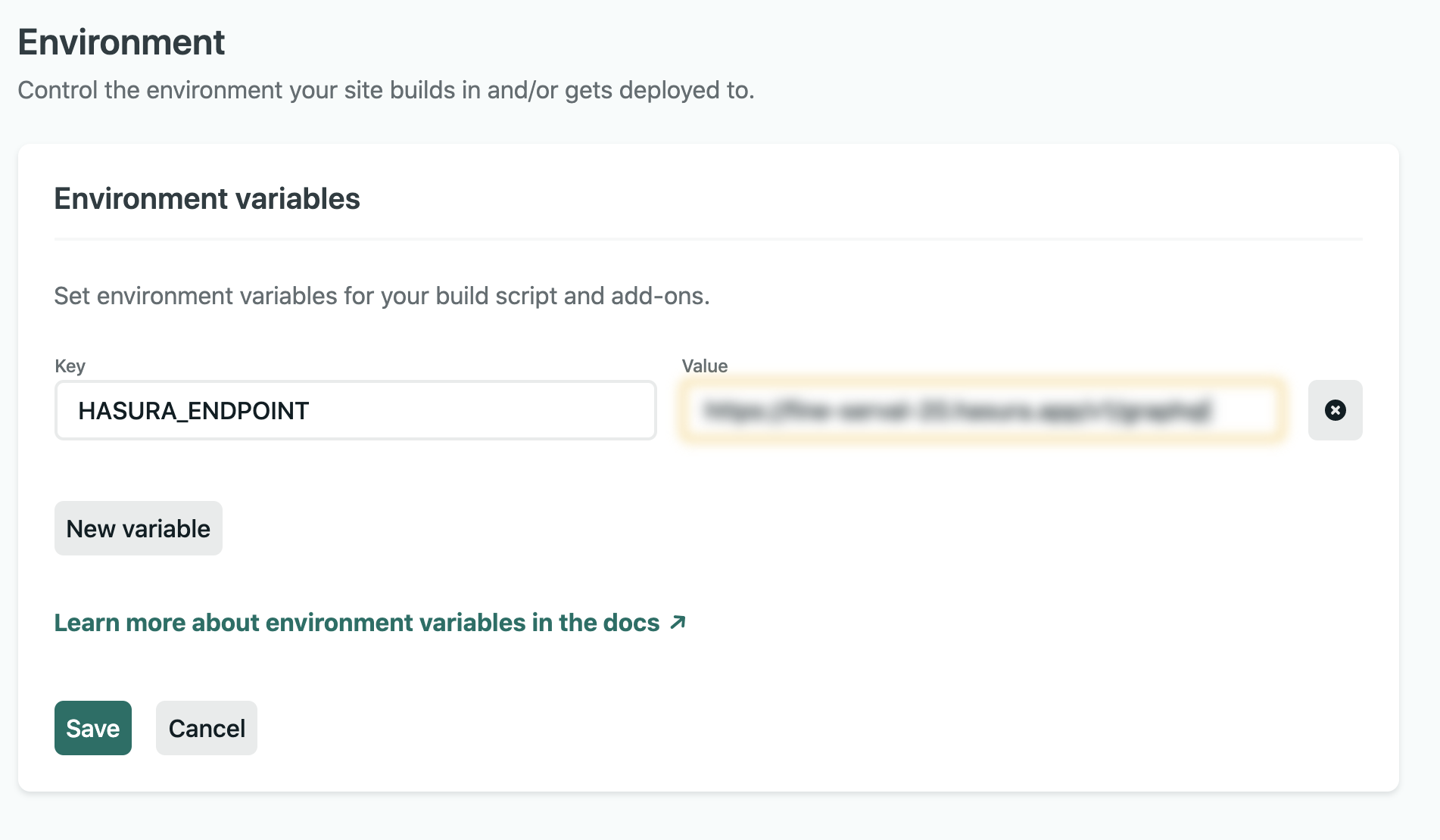

Netlify env settings hasura endpoint key value variable

And there we have it! Our app is living on the internets:

Favorite Games app live

Finally, let’s subscribe to updates

We can create a build hook in Netlify to trigger a rebuild, go again to the settings tab, to Build & Deploy, and then to Build Hooks. I called this one Hasura. Grab the link from here:

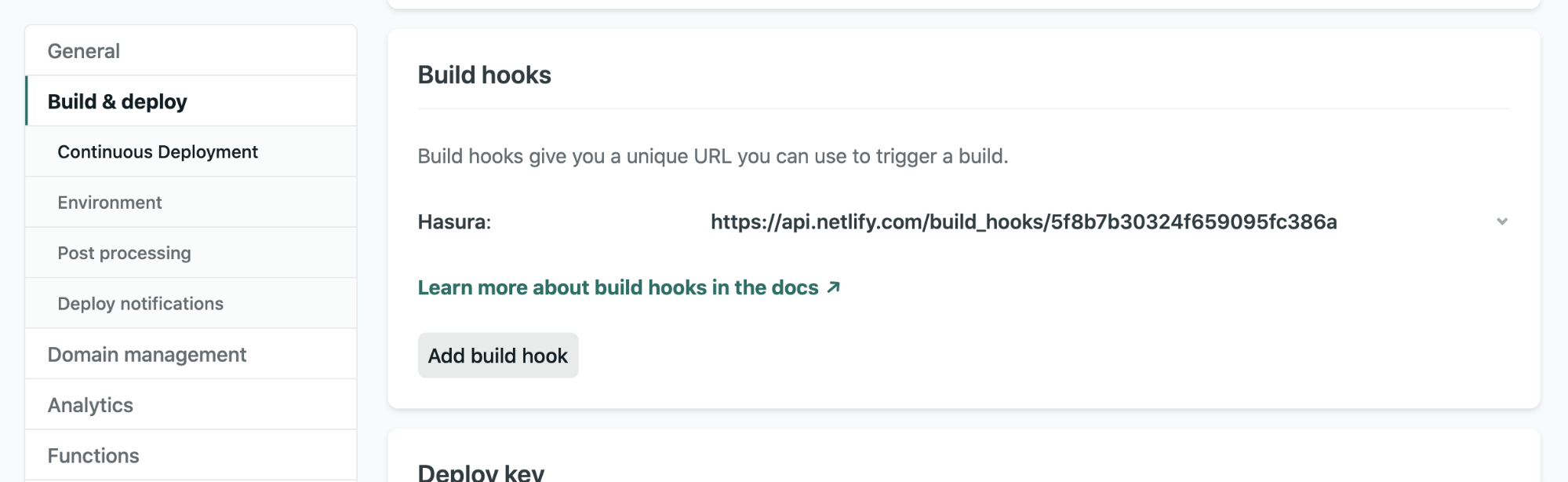

Netlify build hook hasura api link

Finally, back in the Hasura dashboard, we’ll click on the Events tab at the top, name the hook Netlify, and add the hook:

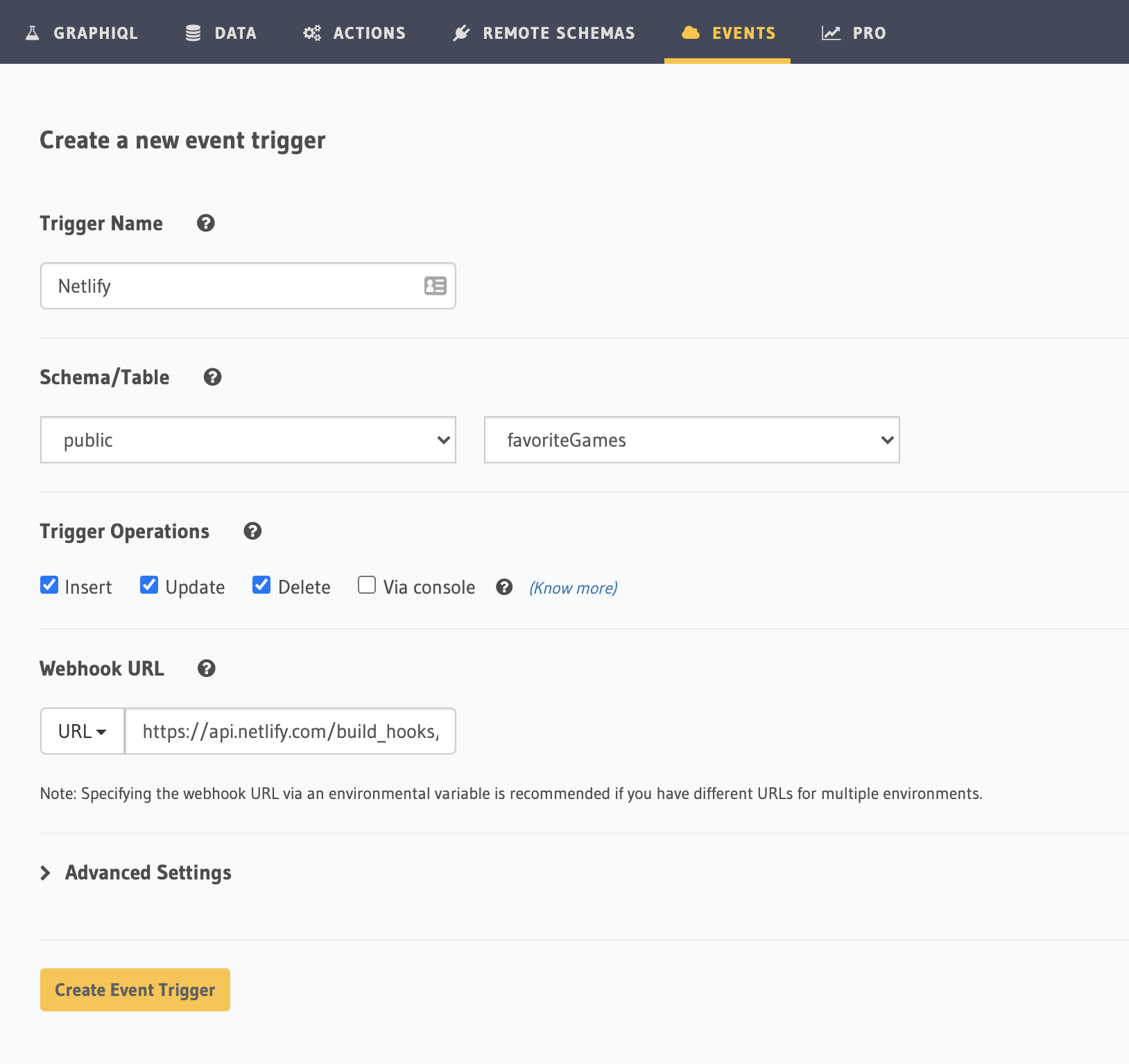

Hasura dashboard event trigger with webhook link

Click the Create Event Trigger button and you’re all set! Now you’ve created a relationship between both accounts, so that when you update your favoriteGames table, Netlify knows to trigger a build and repopulate that data.

Hope this small app helped get you started on these great technologies, so that you can build apps with ease!
