Add Playful Animated SVG Reactions to a Gatsby Blog

Well hey there 👋

In this blog post I’m going to discuss how to add user reactions to your Gatsby blog posts using a fun, open-source React UI component called react-svg-bubble-slider.

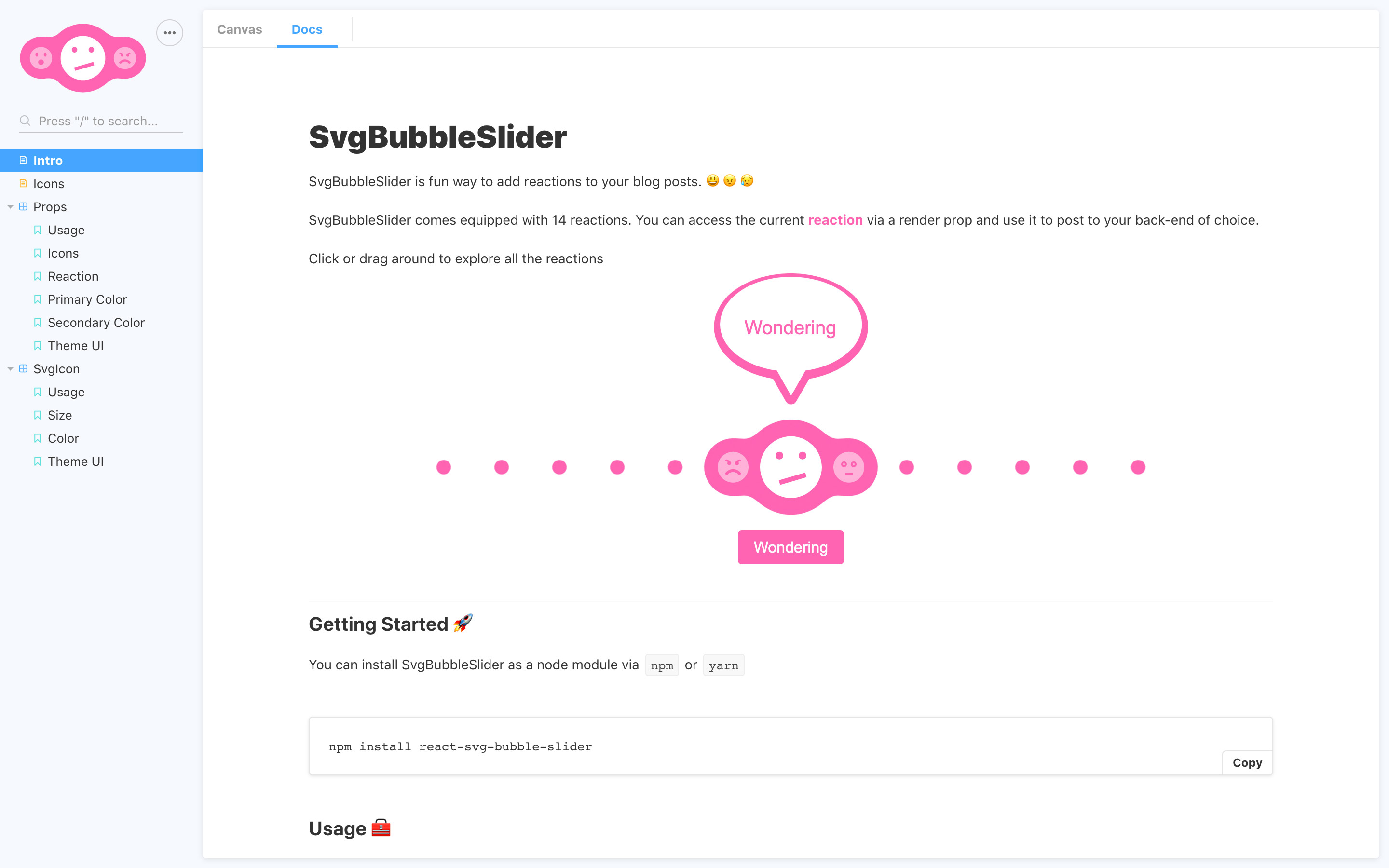

React SVG Bubble Slider

Demo

If you’re a keen bean and would like to see a fully finished demo blog I’ve created an example of how react-svg-bubble-slider could be used to add reactions to a Gatsby blog, using Fauna for the backend and Netlify Functions and apollo-server-lambda to handle the data requests.

Why Reactions?

You’re probably familiar with reactions from social media platforms such as Twitter, Instagram, et al., but I rarely see reactions in blog posts. A common approach in blogs is to implement comments, but there are additional complications involved when allowing users to write whatever they want and post it to your backend.

When you expose an input, you’re giving the reader the opportunity to write anything — it’s only a matter of time before someone writes something rude. You probably don’t want your blog posts peppered with expletives, so you need to set up a moderation queue to review comments and approve or delete them.

Adding reactions removes this extra overhead because you’re only allowing readers to choose from a pre-approved set of reactions. It’s still interactive, but no moderation is required!

When I started to think about reactions I was struggling to think of a fun and original way to present the options to the reader. I toyed around with the “heart”, “thumbs up” / “thumbs down” approach for a while but wasn’t really excited by it, until I saw this tweet from Chris Gannon.

Today’s interactive animation from 2016 is Emoji Bubble Slider. It’s dynamically built and the emojis are ‘glued’ together using the goo filter effect. I have licensed this a surprising number of times! #animationAtHome pic.twitter.com/vW9OlLkYWw

— Chris Gannon (@ChrisGannon) May 15, 2020

As soon as I saw Chris’s SVG Bubble Slider, I knew it would make a perfect way to expose a pre-defined set of reactions to allow readers to leave their reactions on a blog post.

I explained the idea to Chris and he was on board. However this can only be used on free projects. If you want to use it for a commercial project, you’ll need to talk to Chris about a license.

This post will broadly explain the steps required to add react-svg-bubble-slider to a Gatsby blog, but you could similarly add this to any React application.

Get Started

To get started, install the package via npm (or yarn).

npm install react-svg-bubble-slider

You’ll then need to locate your “posts” layout. In this Gatsby project this is saved in src/layouts/post-layout.js. You’ll need to import SvgBubbleSlider to the template or layout responsible for handling your posts.

Once you’ve decided which layout you’ll be amending, import SvgBubbleSlider and add it to the component’s returned JSX.

// post-layout.js
import React from 'react'
import { SvgBubbleSlider } from 'react-svg-bubble-slider'

const PostLayout = () => {
  return (
    <div>
      <SvgBubbleSlider />
    </div>
  )
}

export default PostLayout

By default SvgBubbleSlider displays 14 reactions. This is because I wanted to honor Chris Gannon’s original SVG Bubble Slider, but in a real project you may want to use a restricted set of reactions.

To modify the icons your implementation of SvgBubbleSlider displays you can use the icons prop and pass in only the icons you wish to use.

Here’s an example:

// post-layout.js
import React from 'react'
import { SvgBubbleSlider } from "react-svg-bubble-slider"

const ICONS_TO_USE = ["angry", "sad", "neutral", "smile", "happy", "cool"]

const PostLayout = () => {

  return (
    <div>
      <SvgBubbleSlider icons={ICONS_TO_USE} />
    </div>
  )
}

export default PostLayout

There are a couple caveats when using the icons prop:

  1. You’ll need at least three icons. This is to ensure there are icons to “slide” between.
  2. The icon names must be from the 14 icons included in the package. Check the docs for available icon names.

Get the current reaction

Now that you’ve got the icons configured, you’ll need to get the current reaction, show the reader the current reaction, and then provide a way for the reader to post the current reaction to your backend of choice.

You can access the current reaction via a render prop which you can pass on to a button.

{% raw %}
  // post-layout.js
  import React from 'react'
  import { SvgBubbleSlider } from 'react-svg-bubble-slider'

  const ICONS_TO_USE = ["angry", "sad", "neutral", "smile", "happy", "cool"]

  const PostLayout = () => {
    return (
      <div>
-       <SvgBubbleSlider icons={ICONS_TO_USE} />
+       <SvgBubbleSlider icons={ICONS_TO_USE}>
+         {({ reaction }) => (
+           <div
+             style={% raw %}{{
+               display: "flex",
+               justifyContent: "center",
+               margin: "24px 0px",
+             }}{% endraw %}
+           >
+             <button onClick={() => console.log(reaction)}>
+               {reaction ? reaction : "?"}
+             </button>
+           </div>
+         )}
+       </SvgBubbleSlider>
      </div>
    )
  }

  export default PostLayout
{% endraw %}

Now that you have a method to access the current reaction, you can do something useful with it. In this example, I’ll show you how to increment the reaction count each time the button has been clicked and store it in React’s local state.

In reality, you’ll need to store this data in your backend of choice, but to get you started this will at least show how the React side of things could work.

Import useState so you can store the count value in React’s local state, then set an initial shape of the data along with a initial value for the counts.

{% raw %}
  // post-layout.js
- import React from 'react'
+ import React { useState } from 'react'
  import { SvgBubbleSlider } from "react-svg-bubble-slider"

  const ICONS_TO_USE = ["angry", "sad", "neutral", "smile", "happy", "cool"]

  const PostLayout = () => {

+   const [stateReactions, setStateReactions] = useState(
+     ICONS_TO_USE.map((name) => {
+       return {
+         name: name,
+         count: 0,
+       }
+     })
+   )

    return (
      <div>
        <SvgBubbleSlider icons={ICONS_TO_USE}>
          {({ reaction }) => (
            <div
              style={% raw %}{{
                display: "flex",
                justifyContent: "center",
                margin: "24px 0px",
              }}{% endraw %}
            >
              <button onClick={() => console.log(reaction)}>
                {reaction ? reaction : "?"}
              </button>
            </div>
          )}
        </SvgBubbleSlider>
      </div>
    )
  }

  export default PostLayout
{% endraw %}

If you pop in a console.log(stateReactions) you should see an array of objects like the below:

[
  {
    name: "angry",
    count: 0,
  },
  {
    name: "sad",
    count: 0,
  },
  {
    name: "neutral",
    count: 0,
  },
  {
    name: "smile",
    count: 0,
  },
  {
    name: "happy",
    count: 0,
  },
  {
    name: "cool",
    count: 0,
  },
]

We’re now going to surface the icons and their corresponding counts by mapping over the array shown above and returning an SvgIcon and its count value.

{% raw %}
  // post-layout.js
  import React { useState } from 'react'
- import { SvgBubbleSlider } from "react-svg-bubble-slider"
+ import { SvgBubbleSlider, SvgIcon } from "react-svg-bubble-slider"

  const ICONS_TO_USE = ["angry", "sad", "neutral", "smile", "happy", "cool"]

  const PostLayout = () => {
    const [stateReactions, setStateReactions] = useState(
      ICONS_TO_USE.map((name) => {
        return {
          name: name,
          count: 0,
        }
      })
    )

    return (
      <div>
        <SvgBubbleSlider icons={ICONS_TO_USE}>
            {({ reaction }) => (
              <div
                style={% raw %}{{
                  display: "flex",
                  justifyContent: "center",
                  margin: "24px 0px",
                }}{% endraw %}
              >
                <button onClick={() => console.log(reaction)}>
                  {reaction ? reaction : "?"}
                </button>
              </div>
            )}
        </SvgBubbleSlider>
+       <div
+         style={% raw %}{{
+           display: "grid",
+           gridTemplateColumns: "repeat(6, 48px)",
+           justifyContent: "center",
+         }}{% endraw %}
+       >
+         {stateReactions.map((reaction, index) => {
+           const { name, count } = reaction
+           return (
+             <div
+               key={index}
+               style={% raw %}{{
+                 alignItems: "center",
+                 display: "flex",
+                 flexDirection: "column",
+               }}{% endraw %}
+             >
+               <SvgIcon name={name} />
+               <div>{count}</div>
+             </div>
+           )
+         })}
+       </div>
      </div>
    )
  }

  export default PostLayout
{% endraw %}

The last step is to handle the user interaction when the button is clicked.

For this you’ll need to pass the current reaction name to a function and then update it’s count value in local state.

Inside the handleReaction you’ll map over the current state values and on each iteration check if the reaction name matches the currentReaction. If so, increment the count value; if not, return the reaction object untouched.

This operation updates state using setStateReactions and each time an update occurs the JSX will re-render. You should see the increased count value appear under the corresponding SvgIcon.

{% raw %}
  // post-layout.js
  import React { useState } from 'react'
  import { SvgBubbleSlider, SvgIcon } from "react-svg-bubble-slider"

  const ICONS_TO_USE = ["angry", "sad", "neutral", "smile", "happy", "cool"]

  const PostLayout = () => {

    const [stateReactions, setStateReactions] = useState(
      ICONS_TO_USE.map((name) => {
        return {
          name: name,
          count: 0,
        }
      })
    )

+   const handleReaction = (currentReaction) => {
+     setStateReactions(
+       stateReactions.map((reaction) =>
+         reaction.name === currentReaction
+           ? {
+               ...reaction,
+               count: (reaction.count += 1),
+             }
+           : reaction
+       )
+     )
+   }

    return (
      <div>
        <SvgBubbleSlider icons={ICONS_TO_USE}>
          {({ reaction }) => (
            <div
              style={% raw %}{{
                display: "flex",
                justifyContent: "center",
                margin: "24px 0px",
              }}{% endraw %}
            >
-             <button onClick={() => console.log(reaction)}>
+             <button onClick={() => handleReaction(reaction)}
                {reaction ? reaction : "?"}
              </button>
            </div>
          )}
        </SvgBubbleSlider>
        <div
          style={% raw %}{{
            display: "grid",
            gridTemplateColumns: "repeat(6, 48px)",
            justifyContent: "center",
          }}{% endraw %}
        >
          {stateReactions.map((reaction, index) => {
            const { name, count } = reaction
            return (
              <div
                key={index}
                style={% raw %}{{
                  alignItems: "center",
                  display: "flex",
                  flexDirection: "column",
                }}{% endraw %}
              >
                <SvgIcon name={name} />
                <div>{count}</div>
              </div>
            )
          })}
        </div>
      </div>
    )
  }

  export default PostLayout
{% endraw %}

Remember: this example only stores the count values in local state. If you refresh your browser, all values are reset. In a real example these count values will need to be stored in a database.

In the demo application I’ve used FaunaDB to store reaction counts. If you’d like to learn Fauna, Chris Biscardi has an excellent guide to Fauna that walks through everything you’ll need to get up and running.

If you’re using react-svg-bubble-slider in your project I’d love to hear from you on Twitter (@PaulieScanlon)!!
